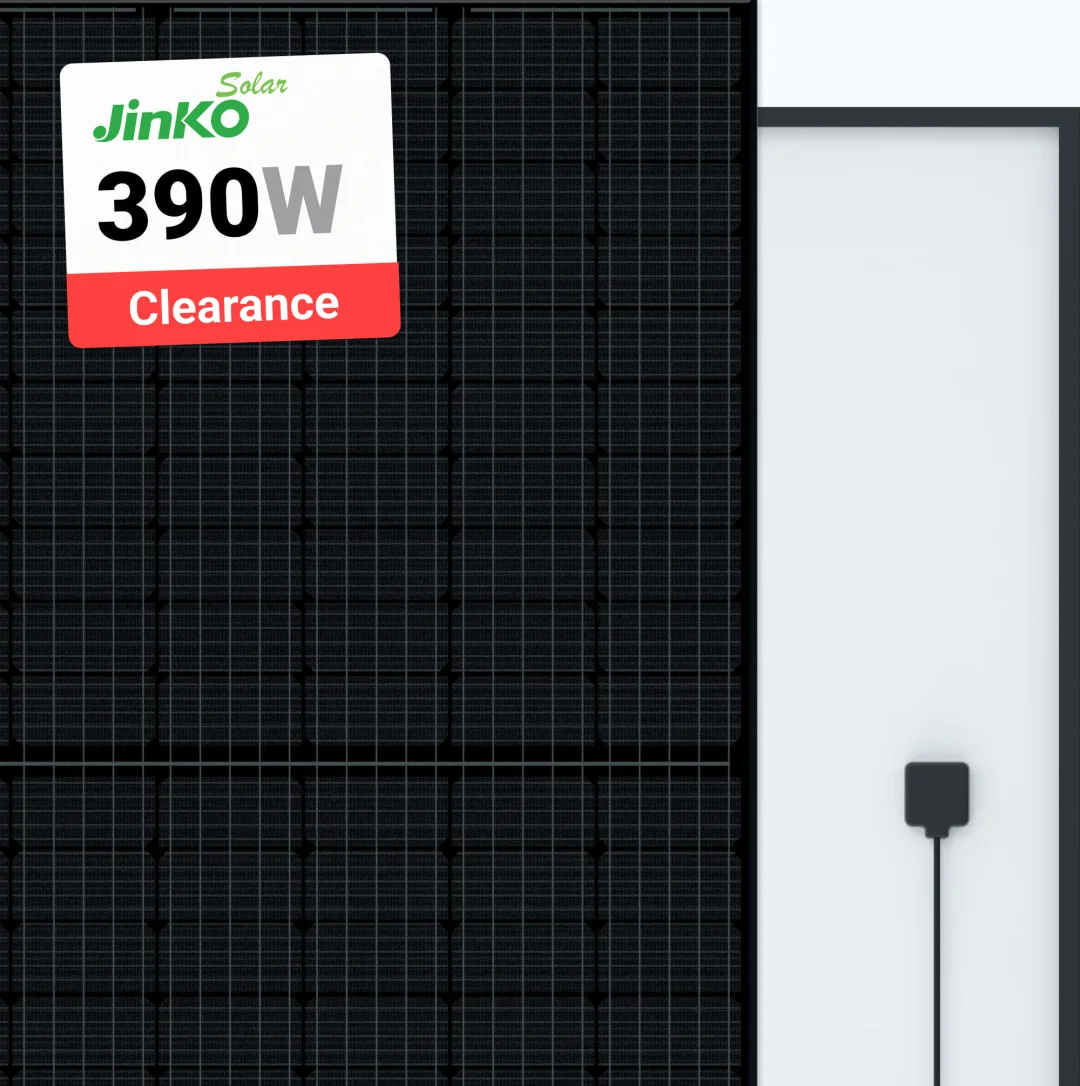

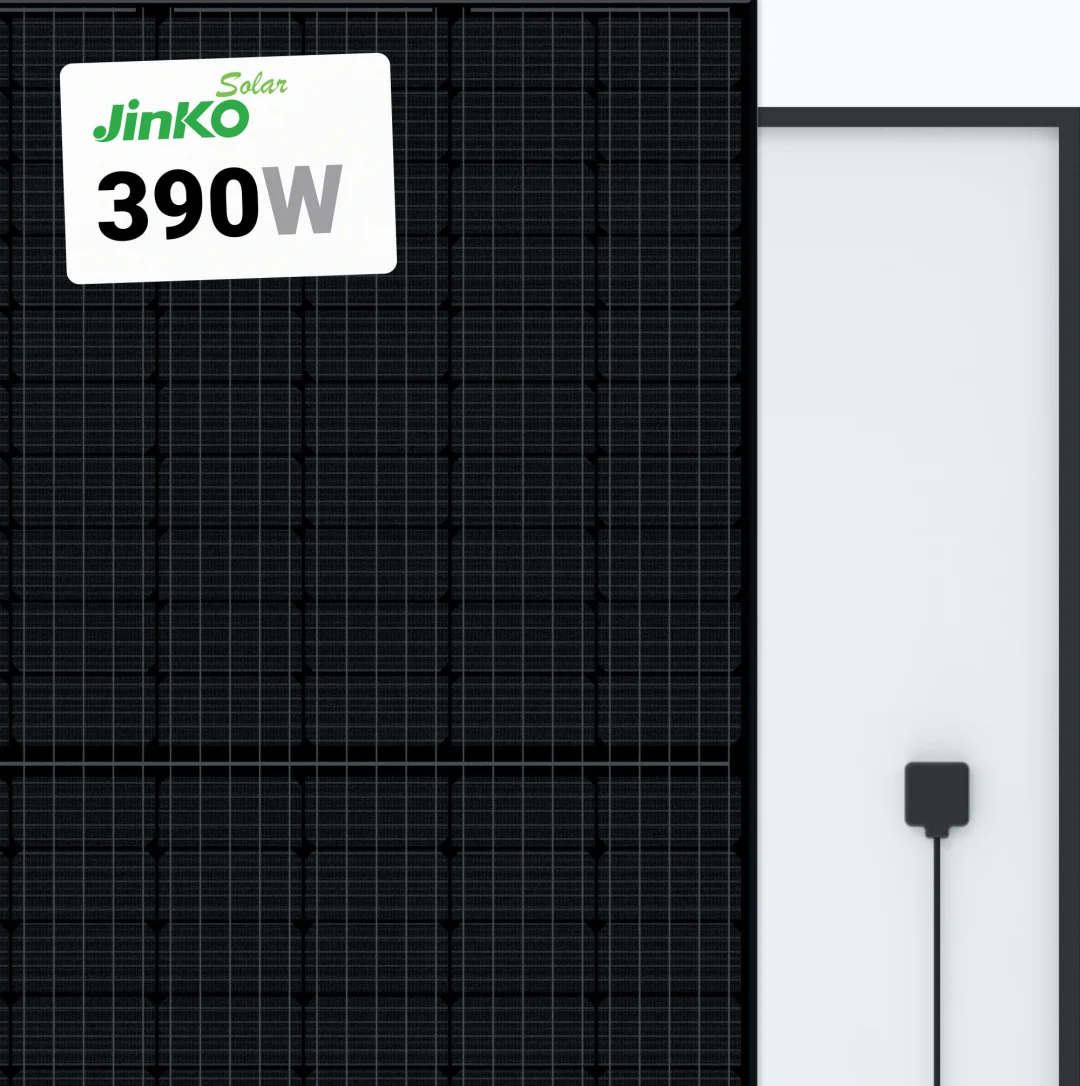

Jinko 390W Solar Panel 144 Cells JKM390M-72HBL-V Clearance
Specifications
| Length | 79.06in |
| Width | 39.45in |
| Rated Power Output | 390 W |
| Voltage (VOC) | 48.6V |
| Maximum String Voltage | 1500V |
| Number of cells | 144 |
| Cell Type | Monocrystalline |
| Rated Efficiency | 19.38% |
| Connector Type | Staubli MC4 Series |
| Backsheet Color | black |
| Frame Color | black |
| Dimensions LxWxH | 79.06 x 39.45 x 1.57 in |
| Weight | 49.6 |
| Pallet Qty | 27 |
| Manufacturer | JinkoSolar |
| Manufacturer Part # | JKM390M-72HBL-V |
| Operating Temperatures | −40°F to +185°F |
| Scope of Application |
|
| Use |
|
| Warranty | 25 Year Product and Performance Warranty |
| Delivery Time | 5-7 Business Days |
About product
Among the newest offerings of Jinko, JKM390M-72HBL-V is part of the Eagle Continental series. These panels use state-of-the-art technology to achieve high efficiency and dependability. The Passivated Emitter Rear Contact (PERC) technology ensures excellent power output. This solar cell type employs an additional reflective layer to absorb more sunlight.
To further boost the performance, Jinko employs half-cut cell technology. Each of the panel’s 144 cells is only half the size of a traditional solar cell. This grants JKM390M-72HBL-V lower resistive losses and better shade tolerance. Not surprisingly, the efficiency of this module is quite high – 19.38%. Novel design solutions allow this panel to look as well as it performs. This model is just 1.57″ in depth and is jet black with a sleek finish. The panel’s functionality and durability are not affected by its aesthetic appeal though. Jinko offers 25 years of product warranty and guarantees 83.1% of original performance after 25 years of operation.
- 144 half-cut PERC cells
- 390 W nameplate capacity
- 19.38% efficiency
- 1500 V DC maximum system voltage
- Staubli MC4 connectors
- 25 years of product and 25 years of performance warranty
Outstanding productivity integrating the newest advances
This panel’s manufacturer offers power output of 390 W at 19.38 percent efficiency. High energy production levels are attained by utilizing the most recent developments in the solar sector. A more productive panel produces more per square foot and pays for itself more quickly.
Keeping the cool in high temperatures
Even under extreme heat, JKM390M-72HBL-V maintains high efficiency. You may take advantage of the sunniest hours because it loses just -0.35% of efficiency for every 1.8°F over 77°F.
High quality standards
Jinko stringent production requirements include various tests to guarantee high quality. Premium solar module factory is based in Jacksonville, Florida. The facilities are highly automated, allowing the manufacturer to maintain high standards while keeping warranty claims to a minimum.
Low degradation for increased lifespan
The amount of power output loss experienced by these panels during the first year of operation will not exceed 2.5%. The average yearly power drop from the second to the 25th year will not surpass 0.60%. After 25 years, the module will still produce more than 83.1% of its initial output.
Enhanced frame design

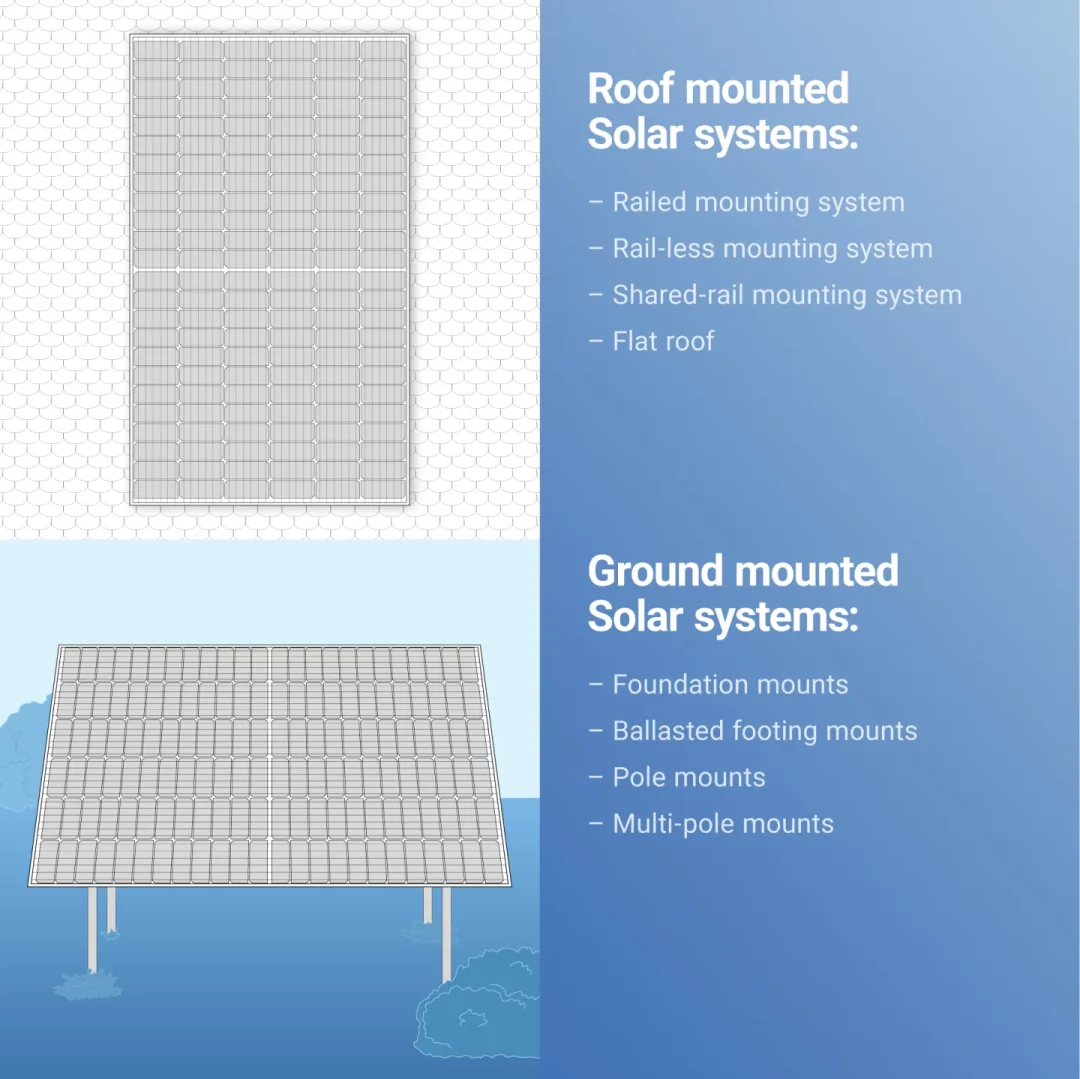

JKM390M-72HBL-V design makes it ideal for residential and commercial rooftops. Strong 1.57″ frame made from anodized aluminum increases durability and strength. The model can support a heavy snow load up to 5400 Pa. The back of the panel can handle 2400 Pa, ensuring that your system will survive the strongest of winds.
Outstanding all-black design
The panel has a sleek, all-black style that complements any roof beautifully. Jinko uses unique treatment and selection procedures to guarantee optimum cell color. The cells are connected by thinner wires, and from a distance, the surface of the modules seems seamless and smooth.
Size
79.06″ x 39.45″ x 1.57″
Weight
49.6 lb
