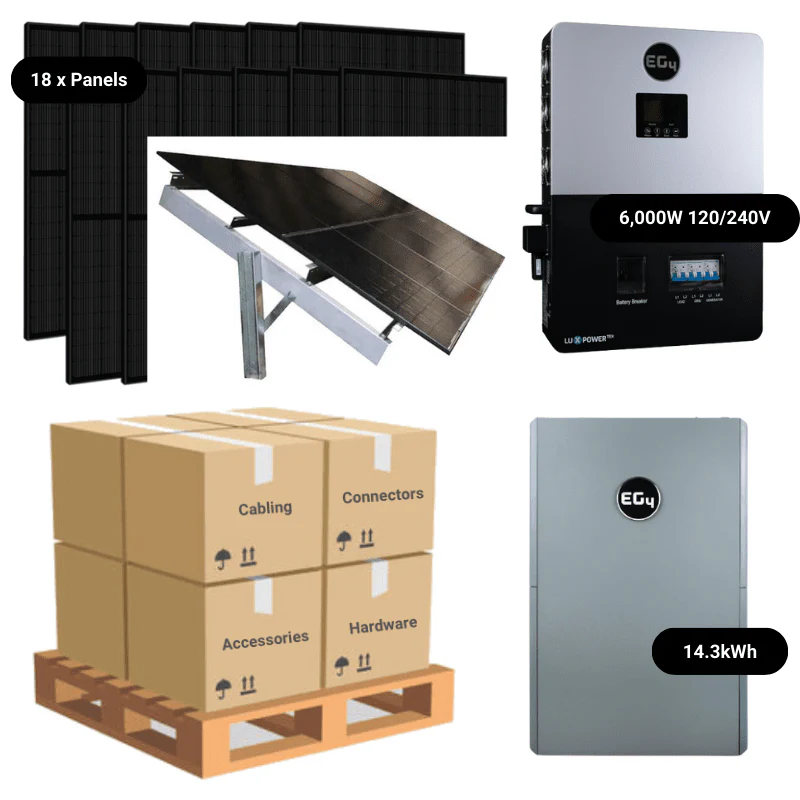

7.2kW Complete Solar Power System – 6,000W 120/240V [14.3kWh-15.36kWh Lithium Battery Bank] + 18 x 400W Mono Solar Panels
Product Specifications:
| EG4 6000XP PV Hybrid Inverter Specs | |
|---|---|
| Nominal AC Voltage | 120-240VAC |
| Frequency | 50/60Hz |
| Max. Continuous AC Current | 37.5A @ 240VAC |
| Max. AC Input Power | 9000W |
| Dimensions | 18×25.5×5.25 in (457×648×132mm) |
| Weight | 52.9 lbs (24kg) |
| Max. Continuous Output Current | 25A |
| Output Voltage | 120/240VAC |
| Nominal Power Output | 6000W |
| Output Frequency | 50/60Hz |
| EG4 PowerPro [14.3kWh] Wall Mount Lithium Battery Specifications | |
|---|---|
| Model name | PowerPro WallMount AllWeather Battery |
| Battery Type | LiFePO4 (Lithium Iron Phosphate, Grade A) |
| Voltage | 54V) |
| Continuous Charge/Discharge Current | 200A (Max) |
| Capacity | 14.3kWh |
| BMS | 200A |
| Weight | 308.6 lbs. / 140Kg |
| Dimensions | 34.6 in.×22.3 in.×9.1 in |
| OGK - MAX Solar Kit | |
|---|---|
| Max Continuous Output | 6,000W |
| Max Solar Input | 8,000W |
| Total Wattage of Panels | 7,200W |
| Total KWH of Batteries | 14.3kWh |
| Wattage Per Panel | 400W |
| # of Panels | 18 |
| System Voltage | 48V |
| Chemistry | Lithium |
| # of Batteries | 1 |
| Battery Weight | 308.6 lbs. |
| 400 Watt Solar Panel Specifications | |
|---|---|
| Cell Type | Monocrystalline |
| Optimum Operating Voltage (Vmp) | 31~35V |
| Optimum Operating Current (Imp) | 11~14A |
| Open Circuit Voltage (Voc) | 37~42V |
| Short Circuit Current (Isc) | 12~14 |
| Module Efficiency | 20.5~20.8 |
| Weight | 20.5±1.0 kg |
| Dimensions | 43.07~44.64 x 67.79~69.05 in |
| Warranty | 25years Linear Performance Warranty |
What’s Included:
-
1 x EG4 6000XP Off-Grid Inverter
-
18 x 400 Watt Monocrystalline Solar Panels 12V – 25-Year Power Output Warranty
-
2 x PV Inline Fuse Kit
-
1 x DC Disconnect Switch
-
1 x EG4 PowerPro [14.3kWh] Wall Mount Lithium Battery
-
1 x 2/0AWG, Inverter to Battery Cable, SET
-
Free System Schematic & Wiring Diagram Included
-
Lifetime Customer Support (via Phone, Live Chat, Email)
Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
Additional information

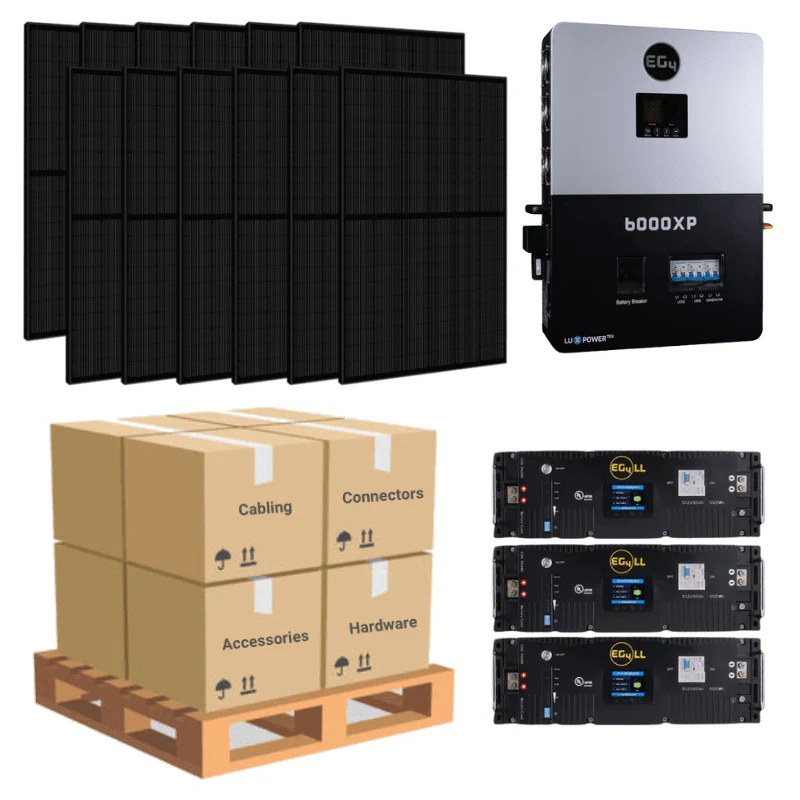

| Battery Bank | 1 x Wall Mount 14.3kWh EG4, 3 x Server Rack 15.3kWh EG4-LL-S |
|---|---|
| Solar Panel Racking | None / Not Needed, Roof Rack – Standard, Ground Mount – Fixed |
